12v 0.24w 5050 1 led mini led module for mini slim channel letter with CE ROHS approved,UL listed

HK Anenerge Co., Limited
Contact Now
  • Product Details
  • Company Profile

12v 0.24w 5050 1 led mini led module for mini slim channel letter with CE ROHS approved,UL listed

12v 0.24w 5050 1 led mini led module for mini slim channel letter with CE ROHS approved,UL listed


Specification


Product name:mini channel letter led module, 18~20 LmApplication:Backlighting in slim/mini channel letters
LED type: Epistar 5050 LEDLED quantity: 1 pieces
Physical dimension: 20mm*10mm*5mmOperating voltage: 12VDC
Power consumption: 0.24WattOperating temperature: -20°C~70°C
Emitting color: White, Warm white,Red,Green,Blue(Please note the color you need)Luminous output each color:18~20 Lumens (White)
Beam angle: 160°Life span: 35000 hours
Defend grade: IP65Driven mode: Constant Voltage
Weight: 0.12KG per piecePackage: Plastic blister & cardboard carton

Product feature

1.SMD5050 TopLED as light source,super luminous flux.
2.large viewing angle 160degrees with even light shadow.
3. lower light decay and long life span up to 35000 hours.
4.Low cost against high light flux, good color uniformity.
5.Energy saving,environment-friendly.
6.Suitable for backlighting to mini and slim channel letters.
7. Suitable for accent lighting, edge lighting.
8. Waterproof, IP65, ideal for outdoor use
9. Easy installation and maintenance free

Quality control

We have already mentioned it, but we have not detailed it yet. We can offer warranties of 5 years due to the great resistance of materials and intelligent design used. Schematically explained in the following points>

We only work with leds from the top5 led suppliers in the world.

Each led works in parallel and individually within each module.

The base material of integrated circuits is resistant to heat and moisture.

Components are assembled with a double seal with anti-vibration protection.

The exteral housing is fireproof, thick and tight.

Our resine is ultra-transparent, long life and high resistance, keeping each module hermetic.

Each module is shipped pre-tested.

We have CE & RoHS certificates and UL Listed, and any other test certificate can be performed.

Product's Photo:


QQ图片20171209160526QQ图片20171209160538QQ图片20171209160504

Installation


Application

a. Widely Used in Household Lighting.
b. Backlighting for Advertisement ,Signboard and Billboard.
c. Backlighting for Lightingbox .
d. Signal Lamp for Letter Channel.
e. Emergency / rescue signs
f. Edge lighting of transparent diffused materials

12v 0.24w 5050 1 led mini led module for mini slim channel letter with CE ROHS approved,UL listed

EURO


Characteristics of mini channel letter led module:


·Highest Brightness: 18~22Lm


·Easy Installation

LED Modules can be easily installed with 3M double-sided sticking tape and connectors.


·Extended Life

LED Modules have a life time of more than 35,000 hours.


·Totally waterproof

LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.


·Friendly environment

Pb free. With CE/RoHS certificate and UL Listed, Waterproof LED Modules are up to 60% more energy efficient than neon.


·Safe Application

Low voltage DC12V, safety and stable. Free maintenance


·Cost Effective


Suttable in mini /Slim channel letter.

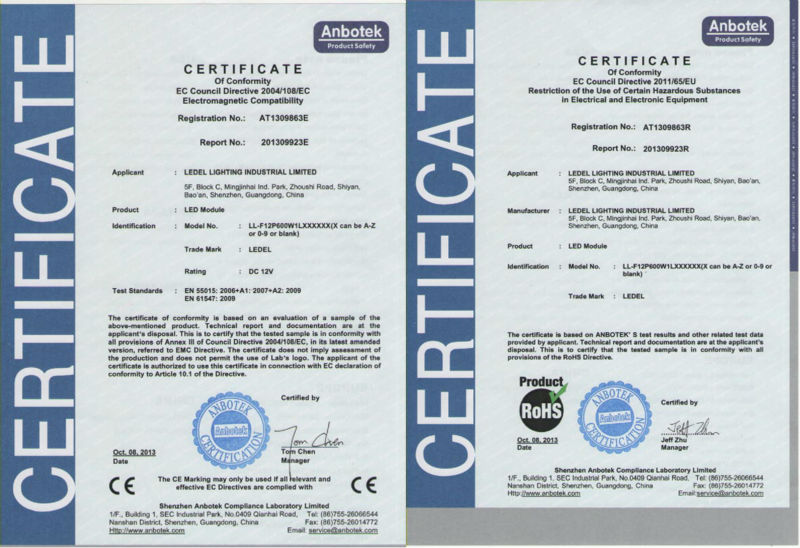

Product Certification:

CE ROHS


Order details:

MOQ: 100pcs/Lot


Trade term: FOB Shenzhen


Delivery time: 3-5 working days for sample order, 7-10 working days for mass order


Warranty: 3 years since the date of purchase
