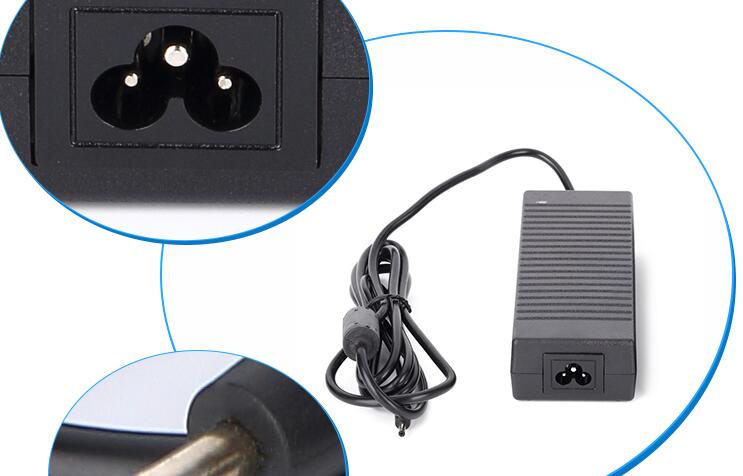

12v 8a 96Watt desktop power adapter for led strips, CCTV camera,with 5.5*25mm dc connector
Features:
Universal AC input/Full range(up to 264Vac)
Protection: Short circuit/Overload/Over temperature
High efficiency, long life and hign reliaility
100% full load burn-in test
One year warranty
Class 1 design
| 96W power adapter | |
| Part. No. | AE-12008000 |
| AC Input | 100~240V AC 50/60Hz Max:90~264V AC 47/63Hz |
| DC Voltage | 12V |
| Rate Current | 8A |
| Current Range | 0~8A |
| Rate Power | 96W |
| Material | 100% PC |
| Certification | Approved CE ROHS FCC C-TICK certification |
| Rippe & Noise | <120MVP-P |
| Voltage Tolerance | ±5% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Efficiency | >85% |
| Short Circuit Protection | Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed. |
| Over Current Protection | 130%~150% |
| Over Voltage Protection | 115%~135% |
| Operating Temperature | -10℃~50℃(±10℃) |
| Relative Humidity | 20%~90% RH |
| Storage Temperature | -40℃~80℃(±10℃) |
| DC Connector | 5.5*2.5mm or 5.5*2.1mm (Customized available) |
| DC Cable | 1.2M, 1.5M, 1.8M, 2M, 3M, 5M(Customized available) |
| AC Cable | USA/UK/EU/AU/India Plugs(Customized available) |
4, output short circuit protection :
Output short circuit, the power supply into the protection of the
state, after the failure to
lift the power to automatically resume normal work .
5, output overload protection :
When the output load current is more than 1.5 times, the product
enters the the state of
the protection, the product is not damaged, when the fault is
excluded, the power
automatically resume normal work
6, output over temperature protection :
When power supply working environment temperature exceeds 85 + 5
DEG C, OTP
power protection no output, below the point of internal power
supply temperature is reset
to the protection and automatic restoration of power work
7, reliability requirements :
When the rated input voltage, full load, ambient temperature is 25
degrees Celsius, the
average power supply no failure time at least 50000 hours
8, safety rules :
(1) dielectric withstand voltage (high pressure) : I/P-O/P:3.75KVAC
(2) leakage current : 0.25mAmax at 240Vac/50Hz
(3) insulation resistance : I/P-O/P:≥50M O hm s/500V D C /25℃/70% R H
(4) safety standards : EN61347-1 Meet EN61347-1
(5) cooling mode : Natural cooling
|
|
