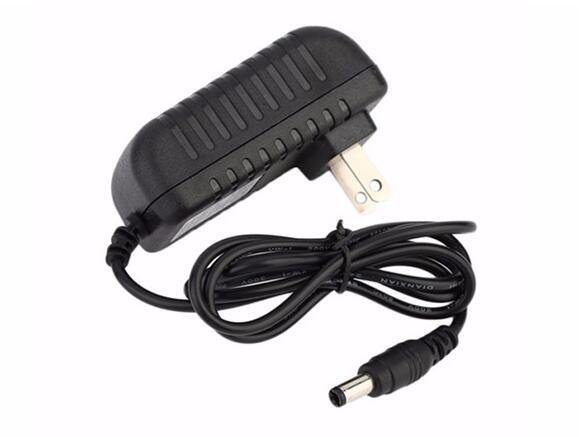

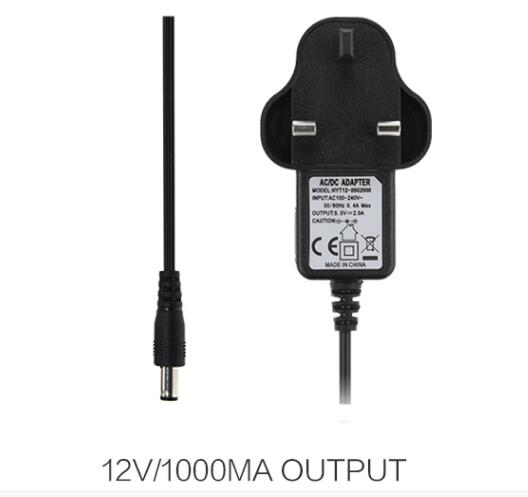

Ac dc adapter 12v, wall mount power supply 12watt 24watt 30watt for lcd monitor,router,led strips

Place of Origin: Guangdong, China (Mainland)

Brand Name: Anenerge

Model Number: AE-1202000

Output Type: DC

Connection:Plug In

size: 74*38*29mm

Output Voltage: 5-48V

OutputCurrent(Max): 0.1-6.0A

Input Voltage: AC90-264V

Input Frequency: 50-60Hz

Input current: 0.5A Max

Operating Temperature: 0-40 degree

Storage Temperature: 20-85 degree

EMC(EMI/EMS): FCC CE C-Tick

Features

1.Over-Voltage protection
2.Over-Current protection
3.Short-Circuit protection
4.100% Hi-pot&ATE(Chroma) Tested
5.100% Burn-in under High
6.Ambient Temperature(40℃)
7.Low Ripple/Noise
8.MTBF Above 40000 HRS AT 25℃
9. LVD authentication
10.Limited power sources(LPS)
11. CEC IV and V Efficiency
12.Cispr22 CLASS B FCC Part 15 CLASS B

Output Voltage	5-48V
Output Current	0.1-6.0A
Input	AC 100V-240V,50/60Hz 0.6A
Range Voltage:	AC 90V-264V,47/63Hz
Output Power:	24W
Input Current	2.0A Max
Inrush current	100A Max
Line Regulation	1% Max
Load Regulation	5%Max
Ripple&Noise	1%Max
Efficiency	75-87%
Operating Temperature	0-40 degree
Storage Temperature	20-85 degree
Over-Voltage Protection	Auto Recovery
Short-circuit protection	Auto Recovery
Safety Standard	CB UL GS CCC SAA
EMC(EMI/EMS)	CE FCC C-TICK
Size	Case Size:74*38*29mm Cable size:1.2m
Warranty	2years

HK Anenerge Co.,Limited, established in 2008 , Be specialize in LED power adapter,AC DC adapter,Laptop  AC adapter, LED flood light,LED highbay light, LED down light, LED strips,switching power supply, LED aluminum profile, LED laser light, LED driver,charger,etc..

the production of power products for flat computers, smart phones, settop boxes, digital photo frames,routers, security equipment, Statistics equipment category, there are two plants were set up with the
total area of about 3,500 square meters, more than 35employees, with 3 lines of Panasonic SMT automated assembly, 2 lines of automatic import plugin equipments, and introduced has full automatically test equipment and the laboratory.
In 2008, the company has passed the ISO9000 quality management system, certified by the CCC, UL, GS, CB, CE, SAA and other safety regulations, the company's products comply with ROHS, PAHs and other environmental requirements, meet the energy star level five, the level five of European ERP energy
efficiency standards.Various switching power supply with an annual output of 15 million sets, to establish a partnership with the Sunway Group, Zheng Wei Group, Hita Secretary Mai Group, the product are exported to Europe, the Americas, the Middle East and Southeast Asia and other countries.

Our company committed to the development and production of high energy-saving power supply products, to provide customers with high efficiency, low loss, up to five of the Energy Star power product responsibility, to contribute to the global energy conservation environmental protection.

Hope have a nice cooperation with you,serve and produce every high quality products you want from China.

Thanks so much.
