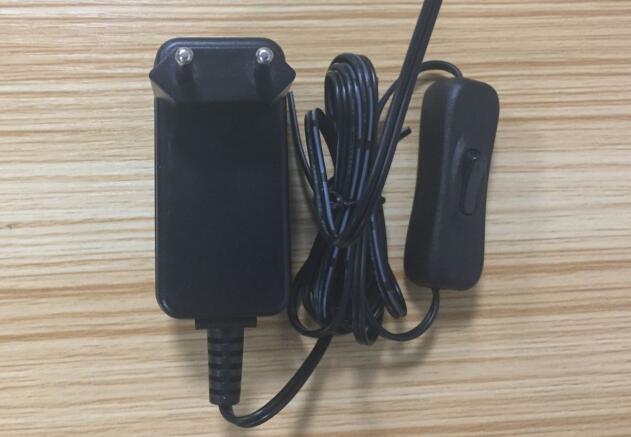

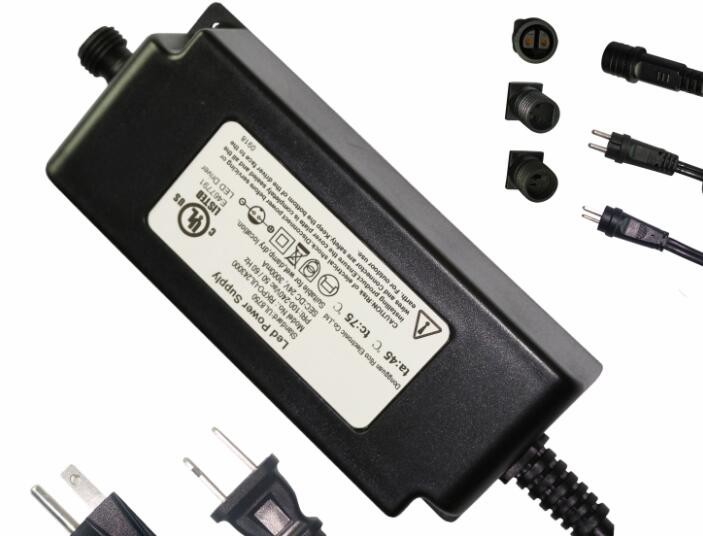

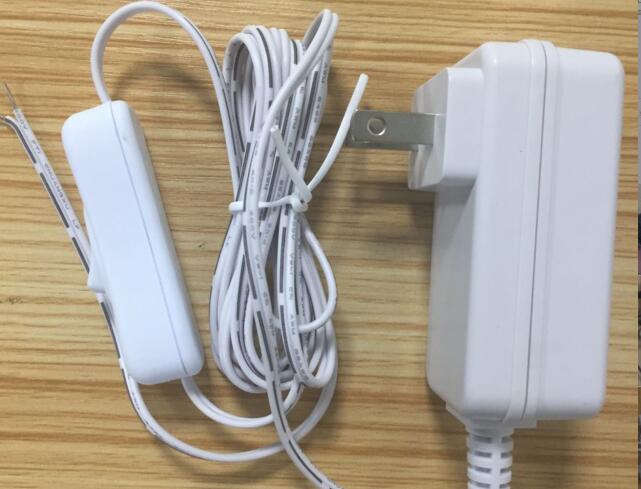

Waterproof 12V 5A IP68 LED power adapter, 60watt switch adaptor,2 years warranty

Specifications:
Input voltage: 100-240V AC, 50/60Hz
AC plug: EU/BS/SAA/PSE/KC/UL/CN available
Output voltage: 3-36V DC constant voltage
Current: 0.1A~3A (maximum)
Power: 70Watt max
Wire: 2468/2464/1185 x 2C, 1.5-1.8 meters
DC plug: ID2.1 x OD5.5 x L10mm or other
Installation: wall mount, plug-in
Colors: black/white
Safeguard: class 2
Waterproof: IP68
Standards: UL,cUL,CE,BS, TUV GS, BIS,PSE,KC,CCC
Certificates: IEC/EN 61558/61347/60950
Efficiency: Level VI or V(CEC/ERP/DOE/MEPS/NRCAN)
Working time: 2-5 years (1 year warranty)

Feature:
Interchangeable AC plugs (plug kit sold separately)
Universal AC input /full range
No load power consumption: <0.1W
Energy efficiency level: VI
Protections: short-circuit/overload/over voltage
Reliability:
Burn-in: 100% full load, 40 ±5°C, 4 hours (minimum)
Leakage current: 0.25mA maximum at 264V AC
Withstanding voltage: (between primary and secondary)
3,000V AC 1 minute 10mA (maximum)
11.MTBF: meet MIL-HDBK-217F
Over 100K hours, full loading, 25°C

Applications:
Scope: lamps, electronic equipment, LED products, CCTV, communication, radios, motor-driven tools and appliances, Geyser, water pumps, toys, safety protections, barbecue machines and others

1)Specifications :

• Input voltage and frequency :220-230V AC 50 HZ
• Output voltage:12vdc
• Output current :500-1500ma
• Watts:18VA MAX

2)Advantages :

• Watertight
• longer life
• no radio interference
• competitive price

3)Other imformations:

• This adapter also called linear adapter and low - efficiaency adapter.
• The output of adapter can design according to customers requirements.

I. It is of IP68 , breaking the traditional aluminum housing practices, plastic shell, good security, water resistance, water resistance than aluminum safety and better.

2. Safety :. ETL / UL, ETL / GS, CE, CB, SAA, UL, TUV certification.

3. Waterproof grade: IP68

4. Inputs and output line will be equipped with waterproof as well and Outputs will be to your choice.

5. Waterproof wire for choice: HO7 /HO5 rubber line, SJTW , SPT-1W ,SPT-2W ,SPT-1 SPT-2, HO3VDE line.,suitable for light control, supporting remote control, remote control transmitter. light control

6. Usage:waterproof outdoor lights, garden lights, buried lights, underwater lights, waterproof lighting, LED lights, fountain lights, Christmas lamps. Pumps, motors, finger lights.
