HK Anenerge Co., Limited Make Professional Service And Products,To Be Your Believable Supplier And Friends
9 Years
| Ask Lasest Price | |
| Brand Name : | Anenerge |
| Model Number : | AE-SPS300 |
| Certification : | CE Rohs FCC |
| Price : | negotiation |
| Payment Terms : | T/T, Western Union, L/C, MoneyGram |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | 3-5 days |

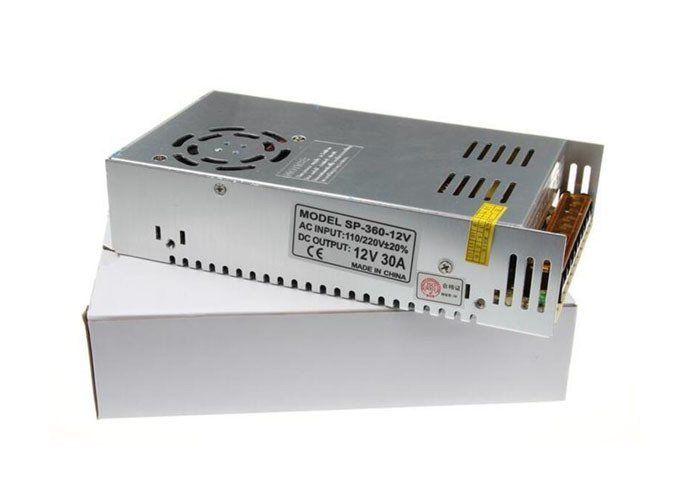

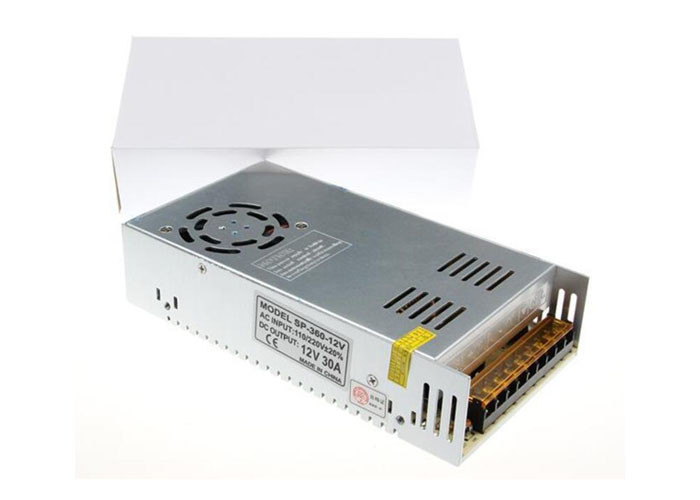

Aluminum 350W AC DC Switching Power Supply for LED Lights with CE
Rohs FCC
Specification
| Model | AE-SPS350-5 | AE-SPS350-7.5a | AE-SPS350-12 | AE-SPS350-13.5 | AE-SPS350-15 | AE-SPS350-24 | AE-SPS350-27 | |
| Output | DC Voltage | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V |
| Rated Current | 50A | 40A | 29A | 25.8A | 23.2A | 14.6A | 13A | |
| Current Range | 0 ~ 50A | 0 ~ 40A | 0 ~ 12A | 0 ~ 13.5A | 0 ~ 23.2A | 0 ~ 14.6A | 0 ~ 13A | |
| Rated Power | 250W | 300W | 348W | 348.3W | 348W | 350.4W | 351W | |
| Ripple & Noise (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | |
| Voltage Adj. Range | 4.5 ~ 5.5V | 6~9V | 10~13.2V | 12 ~ 15V | 13.5~18V | 20~26.4V | 26 ~ 32V | |
| Voltage Tolerance | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Setup,Rise, Hold time | 200ms, 50ms, 20ms at full load | |||||||
| Input | Voltage Range | 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC | ||||||
| Frequency Range | 47~63HZ | |||||||
| Efficiency(Typ.) | 73% | 76% | 74% | 79% | 78% | 81% | 82% | |
| AC Current | 6.5A/115VAC 4A/230VAC | |||||||
| Inrush Current (max.) | 50A/115VAC 50A/230VAC | |||||||
| Leakage Current | <3.5mA / 240VAC | |||||||
| Protection | Over Load | 105 ~ 150% rated output power | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| Over Voltage | 5.75 ~ 6.75V | 9.4 ~ 10.9V | 13.8V~16.2V | 15.5 ~ 18.2V | 18V~21V | 27.6V~32.4V | 33.7 ~ 39.2V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| Function | Fan on/ off Control | RTH3 ≥55°c FAN ON, ≤45°c FAN OFF, ≥80°c output shutdown (5 ~ 7.5V) | ||||||
| RTH3 ≥65°c FAN ON, ≤55°c FAN OFF, ≥80°c output shutdown (12 ~ 15V) | ||||||||
| RTH3 ≥70°c FAN ON, ≤60°c FAN OFF, ≥85°c output shutdown (24 ~ 48V) | ||||||||
| Environment | Working Temperature | -10 ~ +50°c (Refer to output load derating curve) | ||||||
| Working Humidity | 20~90% RH Non-condensing | |||||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | |||||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | |||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X,Y,Z axes | |||||||
| Safety & | Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||
| EMC | Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||
| Others | MTBF | 234.3K hrs min. MIL-HDBK-217F ( 25°c ) | ||||||
| Dimension | 215*115*50mm (L*W*H) | |||||||
| Packing | 1.07Kg; 12pcs/13.5Kg/0.92CUFT | |||||||
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature. | |||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||||||
Features:
• AC input range selectable by switch
• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 83KHz
• 1 year warranty
Advantages:
1. Certificate: CE,Rohs,FCC
2. Quick delievery: 15 days
3. 3 years warranty
4. Quality control: we test one by one before sending out.
5. Long standby time, long lifespan
6. Larger order can get big discount
7. OEM, ODM are highly welcome
|
|
