HK Anenerge Co., Limited Make Professional Service And Products,To Be Your Believable Supplier And Friends
9 Years
| Ask Lasest Price | |
| Brand Name : | OEM/Anenerge |
| Model Number : | AE-2400400 |
| Certification : | CE Rohs FCC UL TUV GS CB SAA KC |
| Price : | 1-3usd/pcs |
| Payment Terms : | Western Union,Paypal,T/T |
| Supply Ability : | 1000000pcs/month |
| Delivery Time : | 3-5days |

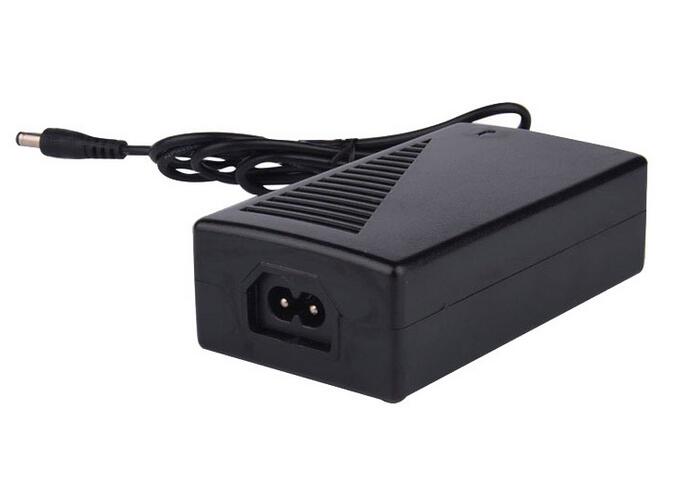

24V 2.3A AC DC power adapter 55.2W desktop power supply charger for CCTVs LCD monitor
| Output | Voltage | 24V DC | |
| Current | 2.3 A | ||
| Output power | 55.2W | ||
| DC cord and Jack | 1.2M length 16 AWG with 5.5*2.5mm / 5.5*2.1mm etc DC | ||
| Ripple and Noise | <120Mv at full road with 20MHz bandwidth | ||
| Input | Rated Voltage | 100Vac~240Vac | |
| Frequency Range | 47Hz~63Hz | ||
| conversion efficiency | >85% | ||
| AC Cable and Plug pins | 1.2M length with 2 pins EU plug, IEC C13(Male) AC socket, IEC C14(Female)AC socket and the AC cable in IEC C13 socket | ||
| Protection | Over Voltage,Load& Current /Short Circuit /High Temp | ||
| Temperature | Operating Temperature | 0°C--+60°C | |
| Storage Temperature | -20°C--+85°C | ||
| Isolation test | Isolation voltage | Input/output terminal 3000VAC,5MA | |
| Other | Type | Desktop | |
| Size(mm) | 142*62*35MM | ||
| Weight(g) | 400G | ||
| Shell color | Black | ||
| Shell materials | ROHS approved ABS or PC | ||
| Application | can fit UK US European market ,and can been used by Bluetooth device ,CCTV camera ,and LCD minitor , mobile phone ,pos machine ,laptop ac adapter and so on | ||
| Certificate | Certificate | CE GS TUV UL/CUL FCC 3C ROHS,SAA,PSE,C-TICK | |
| Safety Standard | EN60950-1 UL60950-1 ESD (EN61000 3-3) | ||
| CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |||
| AN/NZS CISPR 22:2006 | |||
Item Name: | 55.2 w power adapter | Input: | 100-240VAC, 50/60hz |
Output: | 24VDC 2.3A | Power | 55.2Watt |
Energy Efficiency: | DOE VI | Output type: | DC |
Operating Temp.: | -10℃-+45℃ | MTBF | 50000 hours |
StorageTemp.: | -20℃-+80℃ | Material | PC+ABS |
Warranty | 3 Years | ||
Safe Protection: | OCP/OVP/OTP/SCP/OLP | ||
Certificate | UL/cUL, CE, LVD, GS, SAA, C-TICK, CB, FCC, KC, RoHS | ||
Packaging Details: Adapter Weight: 0.380KG/pc
Adapter Dimension : 142(L) x 62(W) x35(H) [mm]
White inner Box weight: 0.01KG
White inner Box Size: 155(L) x 85(W) x35(H) [mm]
Carton Weight: 1KG
Packing Dimension Carton: 495(L) x 420(W) x197(H) [mm]
Packing number: 50 PCS/CTN Total Weight:20 KG
Application:
E-POS,LCD screen,DVR,TVB,Vacuum cleaner,Projector,3D printer,3D pen etc
LED Lighting,Security monitoring,Semiconductor refrigeration and heating
Communication device, Medical device,Home appliance,Electric tools,Industrial equipment
Audio-visual products, digital products and Instrument series etc
Our Advantages:
professional produce team.
responsible sales representatives.
quickly and on-time delivery.
high quality and favorable price.
provide best service including before and after sales.
24H on-line to help you.
two year warranty.
|
|
