    18 Watt Power AC DC Power Adapter Wall Mount With PC Shell , Black Color

    Ask Lasest Price
    Brand Name : OEM/Anenerge
    Model Number : AE-90001000
    Certification : CE Rohs FCC UL TUV GS CB SAA KC
    Price : 1-3usd/pcs
    Payment Terms : Western Union,Paypal,T/T
    Supply Ability : 1000000pcs/month
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

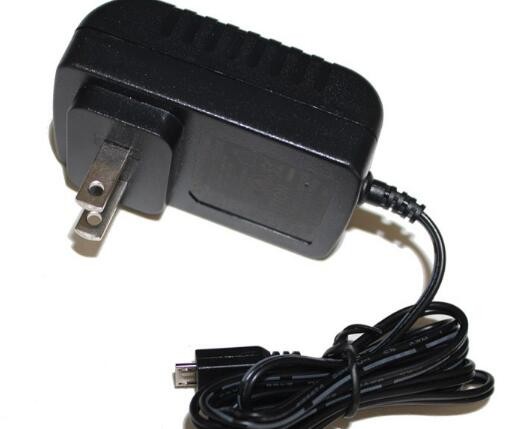

    18 Watt Power AC DC Power Adapter Wall Mount With PC Shell , Black Color

    9v 2a 18watt Wall mount Ac Dc power adapter for LCD, digital frame with CE UL


    1)DCoutput: 9V/2A

    2)ACplug: Europe plug110~240V/50/60HZ

    3)output ripple&sound:≤80mVp-p

    4)DCcord length: 1.0M/Round

    5)product size:75*39.5*61mm(with metal plug)

    6)Color:black

    7)DCplugcan be customized to 3513/4017/5521/5525


    Product NameAc Dc power adapter
    Nominal Input Voltage100-240V 50-60HZ
    Output Voltage9V
    Output Current2A
    Output Power50watt
    Efficiency85%min
    Operating Temperature0°C ~40°C
    Operating Humidity5%~95%RH
    Storage Temperature-20°C ~85°C
    Over Current ProtectonYES
    Over Voltage ProtectonYES
    Over Temperature ProtectonYES
    Short Circuit ProtectonYES

    Other models for choosing:


    TypeVoltage/CurrentPower
    USB adapter5V1A5w
    5V1.5A7.5w
    5V2A10w
    5V2.1A10.5
    Data cableMicroFor 5V1A/2A/2.1A
    for Iphone
    USB-DC cable
    AC/DC adapter5V2A10w
    5V3A15w
    9V1A9w
    9V2A18w
    12V1A12w
    12V1.5A18w
    12V2A24w

    1.Voltage and current can be adjusted by customer requirement.
    2.All parameters are specified at 230VAC input, rated load, 27°C 70%RH ambient.
    3.Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor.
    4.Tolerance: includes set up tolerance, line regulation, load regulation.
    5.DC voltage : the output voltage set at point measure by plug terminal &50% load.
    6.Line regulation is measured from low line to high line at rated load.
    7.Load regulation is measured from 20% to 100% rated load.
    8.The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives.


    Application:


    CCTV,HDDBOX ,DVR,LED-TV,Set Top Box,POS, IP Camera


    Mini sound box, Keyboard, DVR


    Robot vacuum cleaner,etc


    LED strip ,LED light ,LED table lamp.


    Router,amplifier,CCTV camera,hair clipper,recliner


    Home appliances ,setup box ,speaker,


    Audio & Video equipments,


    Wireless communication electronics .


    Medical equipments
