| Brand Name : | OEM/Anenerge |
| Model Number : | AE-5W6W12W |
| Certification : | CE Rohs FCC UL TUV GS CB SAA KC |
| Price : | 1-3usd/pcs |
| Payment Terms : | Western Union,Paypal,T/T |
| Supply Ability : | 1000000pcs/month |
| Delivery Time : | 3-5days |

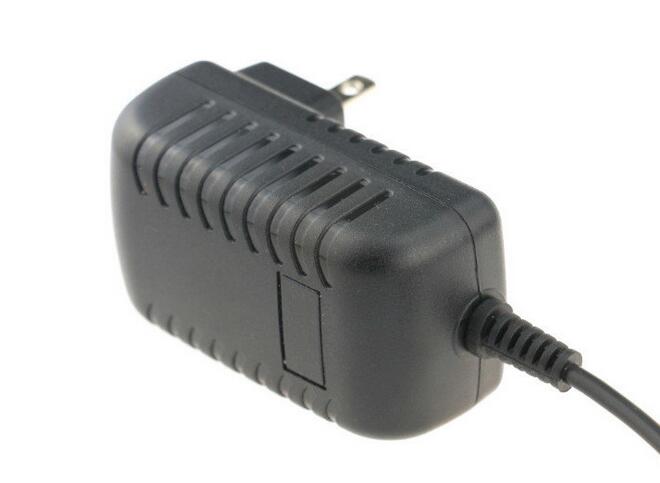

Waterproof IP44 LED power adapter,EU UK AU US 12v 9v 5v 5W 6W 12W waterproof power supply
Output Type:DC
Connection:Plug In
Color:Black
Material:ABS+PC
Ripple Noise:≤200mv
Warranty:2years
Output power:12w
Output voltage:12V±5%
Input voltage:100-240V ac
Usage:Digital Products
Input Frequency:50Hz/60Hz
Working Tempreture: 0℃-40℃
| Technical Specification | Input Voltage | AC 100-240V |
| Input Frequency | 50Hz/60Hz | |
| Input Current | ≤0.4A(AC Input Voltage 100V) | |
| Dash Current | ≤35A(AC Input Voltage 240V) | |
| Power Factor | ≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω) | |
| Efficiency | ≥82.96% at rated voltage | |
| Output Voltage | 12V±5% | |
| Output Rated Current | 1A | |
| Rated Power | 12W | |
| Ripple Noise | ≤200mV | |
| Start Delay Time | ≤3S(under the Iput-voltage of AC110V) | |
| Working Temperature | 0℃ to 40℃ | |
| Storage Temperature | -20℃ to 70℃ | |
| Humidity | 5%-95%(under the condition of non-concentrated) | |
| Atmospheric Pressure | 70 — 106Mpa | |
| Hi-pot Test | AC 3000V(Min), 3S, leakage Current≤5mA | |
| Insulation Resistance | ≥10MΩ (Test condition: standard atmospheric pressure, humidity 90%, DC500V) | |
| Certificate | CE, FCC, ROHS, SAA, CB, GS, KC | |
| Warranty | 2 years | |
| Feature | IC Program Design with low power consumption | |
| 100% aging test | ||
| MTBF50,000 hours under the temperature of 25℃ with maximum load(according to the standard of MIL-HDBK-217) | ||
|
|
