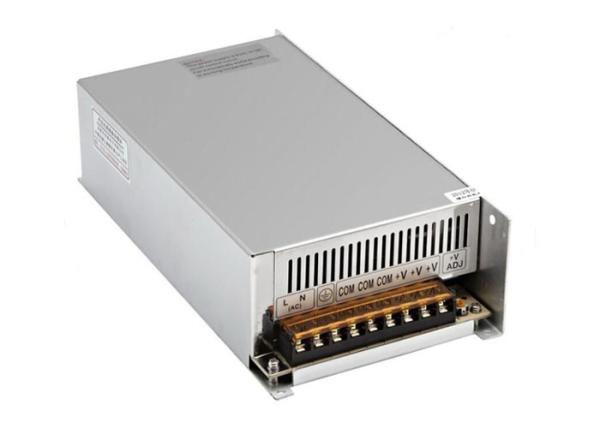

600W AC DC Switching Power Supply 12V With 50 60Hz Frequency 12 Months Warranty
Specification
| Model | AE-SPS600-12 | AE-SPS600-13.5 | AE-SPS600-15 | AE-SPS600-24 | AE-SPS600-27 | AE-SPS600-48 | |
| Output | DC Voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Rated Current | 50A | 44.4A | 40A | 25A | 22A | 12.5A | |
| Current Range | 0 ~ 50A | 0 ~ 44.4A | 0 ~ 40A | 0 ~ 25A | 0 ~ 22A | 0 ~ 12.5A | |
| Rated Power | 600W | 599.4W | 600W | 600W | 594W | 600W | |
| Ripple & Noise (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |
| Voltage Adj. Range | 10~13.2V | 12 ~ 15V | 13.5~18V | 20~26.4V | 26 ~ 32V | 41 ~ 56V | |
| Voltage Tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Setup,Rise, Hold time | 200ms, 50ms, 20ms at full load | ||||||
| Input | Voltage Range | 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC | |||||
| Frequency Range | 47~63HZ | ||||||
| Efficiency(Typ.) | 74% | 79% | 78% | 81% | 82% | 83% | |
| AC Current | 6.5A/115VAC 4A/230VAC | ||||||
| Inrush Current (max.) | 50A/115VAC 50A/230VAC | ||||||
| Leakage Current | <3.5mA / 240VAC | ||||||
| Protection | Over Load | 105 ~ 135% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| Over Voltage | 5.75V~6.75V | 9.4 ~ 10.9V | 13.8V~16.2V | 15.5V~18.2V | 18 ~ 21V | 27.6 ~ 32.4V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| Function | Fan on/ off Control | RTH3 ≥55°c FAN ON, ≤45°c FAN OFF, ≥80°c output shutdown (5 ~ 7.5V) | |||||
| RTH3 ≥65°c FAN ON, ≤55°c FAN OFF, ≥80°c output shutdown (12 ~ 15V) | |||||||
| RTH3 ≥70°c FAN ON, ≤60°c FAN OFF, ≥85°c output shutdown (24 ~ 48V) | |||||||
| Environment | Working Temperature | -10 ~ +50°c (Refer to output load derating curve) | |||||
| Working Humidity | 20~90% RH Non-condensing | ||||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | ||||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | ||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X,Y,Z axes | ||||||
| Safety & | Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||
| EMC | Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||||
| Others | MTBF | 234.3K hrs min. MIL-HDBK-217F ( 25°c ) | |||||
| Dimension | 240*125*65mm (L*W*H) | ||||||
| Packing | 1.90Kg; 12pcs/13.5Kg/0.92CUFT | ||||||
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature. | ||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||||||
Features:
• Universal AC input / Full range
• Protections:Short circuit/Over load/Over voltage
• Forced air cooling by built-in DC fan
• PWM control and regulated
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
• Fixed switching frequency at 25KHz
• Low cost
• 1 year warranty
Advantages:
1. Certificate: CE,Rohs,FCC
2. Quick delievery: 15 days
3. 3 years warranty
4. Quality control: we test one by one before sending out.
5. Long standby time, long lifespan
6. Larger order can get big discount
7. OEM, ODM are highly welcome
|
|
